Low Voltage Capacitor CAP
Improve Power Quality and Efficiency

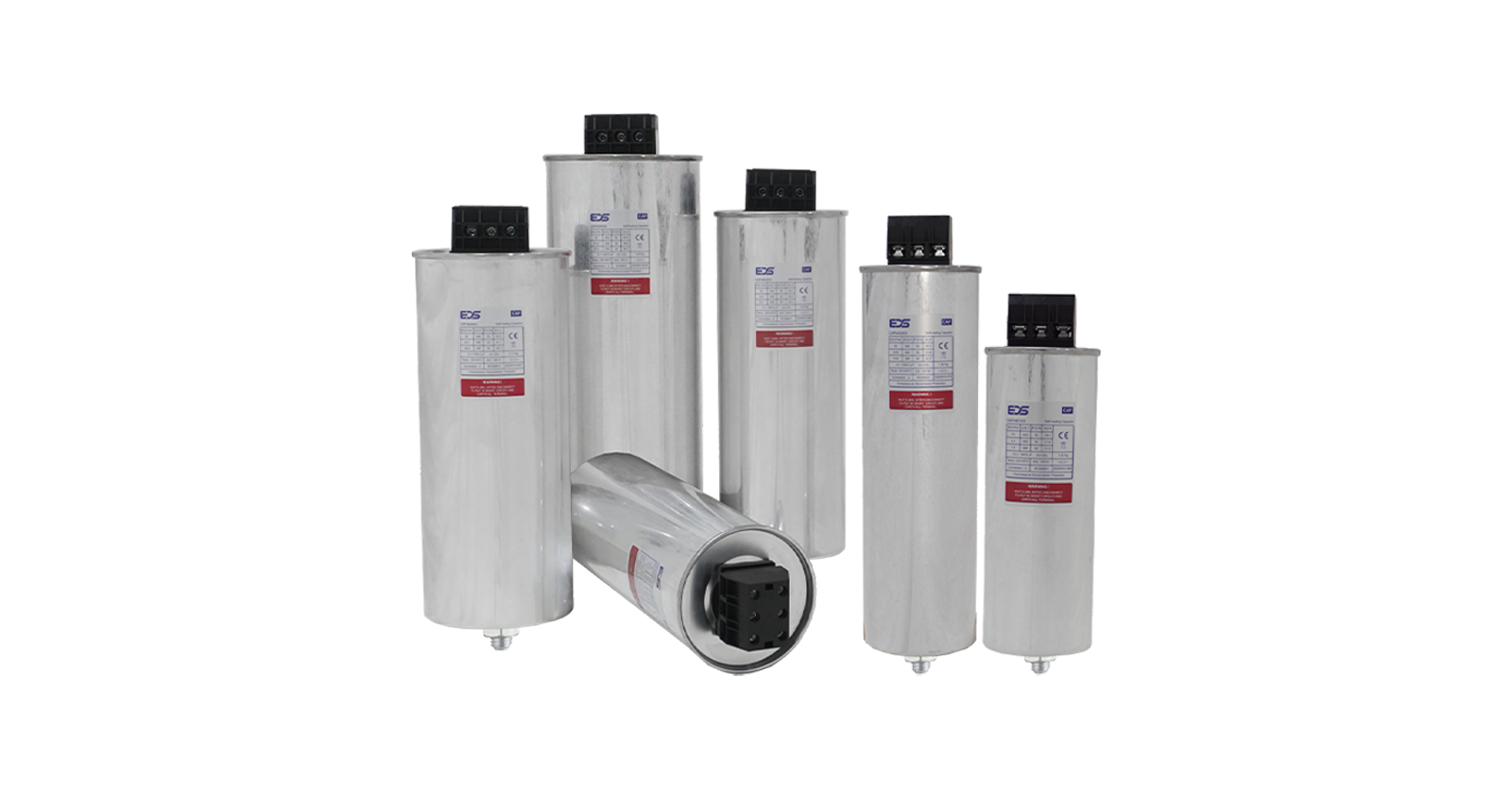

The CAP Series offers cylinder-type capacitors rated from 10kVAr to 50kVAr at 440VAC, with capacitance ranges from 146.7μF to 822.5μF and ±5% tolerance, delivering reliable performance across -25°C to +50°C operating temperature. Designed for high-voltage endurance, the CAP440 capacitors comply with IEC60831 and GB/T 12747, feature M12 bolt mounting, and support controlled overvoltage and current limits, ensuring safe, efficient, and long-lasting reactive power compensation in industrial installations.
Low Voltage Capacitor CAP
Low voltage power capacitor cylinder type 3 phase 440VAC-10 kVar
CAP440103
Low voltage power capacitor cylinder type 3 phase 440VAC-15 kVar
CAP440153
Low voltage power capacitor cylinder type 3 phase 440VAC-20 kVar
CAP440203
Low voltage power capacitor cylinder type 3 phase 440VAC-25 kVar
CAP440253
Low voltage power capacitor cylinder type 3 phase 440VAC-30 kVar
CAP440303
Low voltage power capacitor cylinder type 3 phase 440VAC-40 kVar
CAP440403
Low voltage power capacitor cylinder type 3 phase 440VAC-50 kVar
CAP440503
