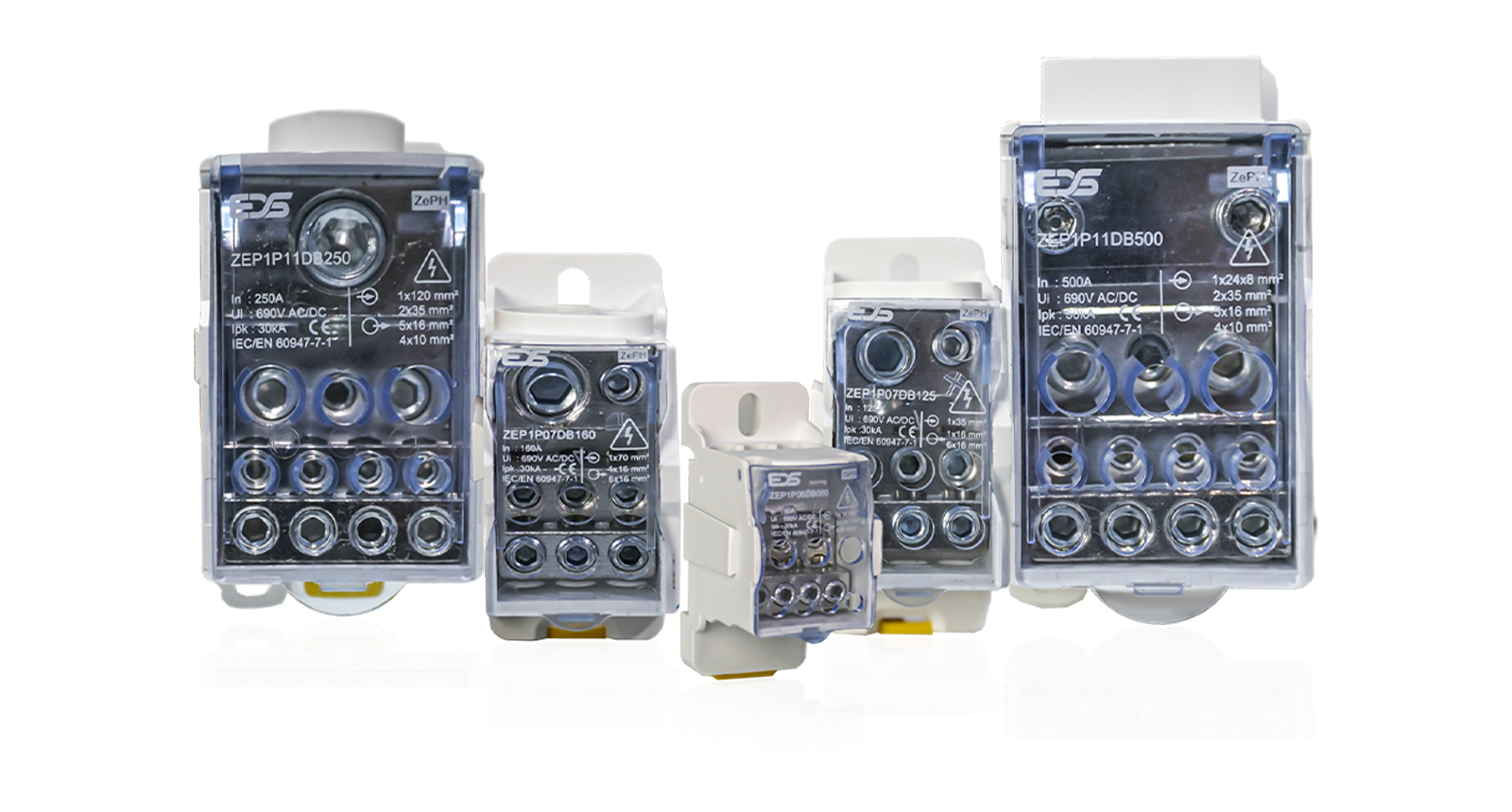

Distribution Block ZePH
Compact, Efficient and Organized Power Distribution
The ZePH Series offers modular and power distribution blocks with ratings from 80A to 500A, supporting 1–4 poles. Made from PA and PC materials, they provide durable, fire-resistant performance in DIN-rail or screw-mounted enclosures. Compliant with IEC/EN 60947, the blocks feature high peak withstand currents (20–30kA), rigid terminals, and wide voltage compatibility (250V/380V), ensuring safe and efficient power connections for industrial installations.
Distribution Block ZePH
Modular Distribution block 4P125A 13+2 Holes 500VAC 20kA
ZEP4P125A13
Modular Distribution block 4P125A 9+2 Holes 500VAC 20kA
ZEP4P125A09
Power Distribution block 125A (In 1x35 out 7x16)
ZEP1P07DB125
Power Distribution block 80A (In 1x16 out 2x16, 4X6)
ZEP1P06DB080
Power distribution block 160A (In 1x70, out 7x16)
ZEP1P07DB160
Power distribution block 250A (In 1x120, out 2x35, 5x16, 4x10)
ZEP1P11DB250
Power distribution block 400A (In 1x185, out 2x35, 5x16, 4x10)
ZEP1P11DB400
Power distribution block 500A (In 24x8, out 2x35, 5x16, 4x10)
ZEP1P11DB500
