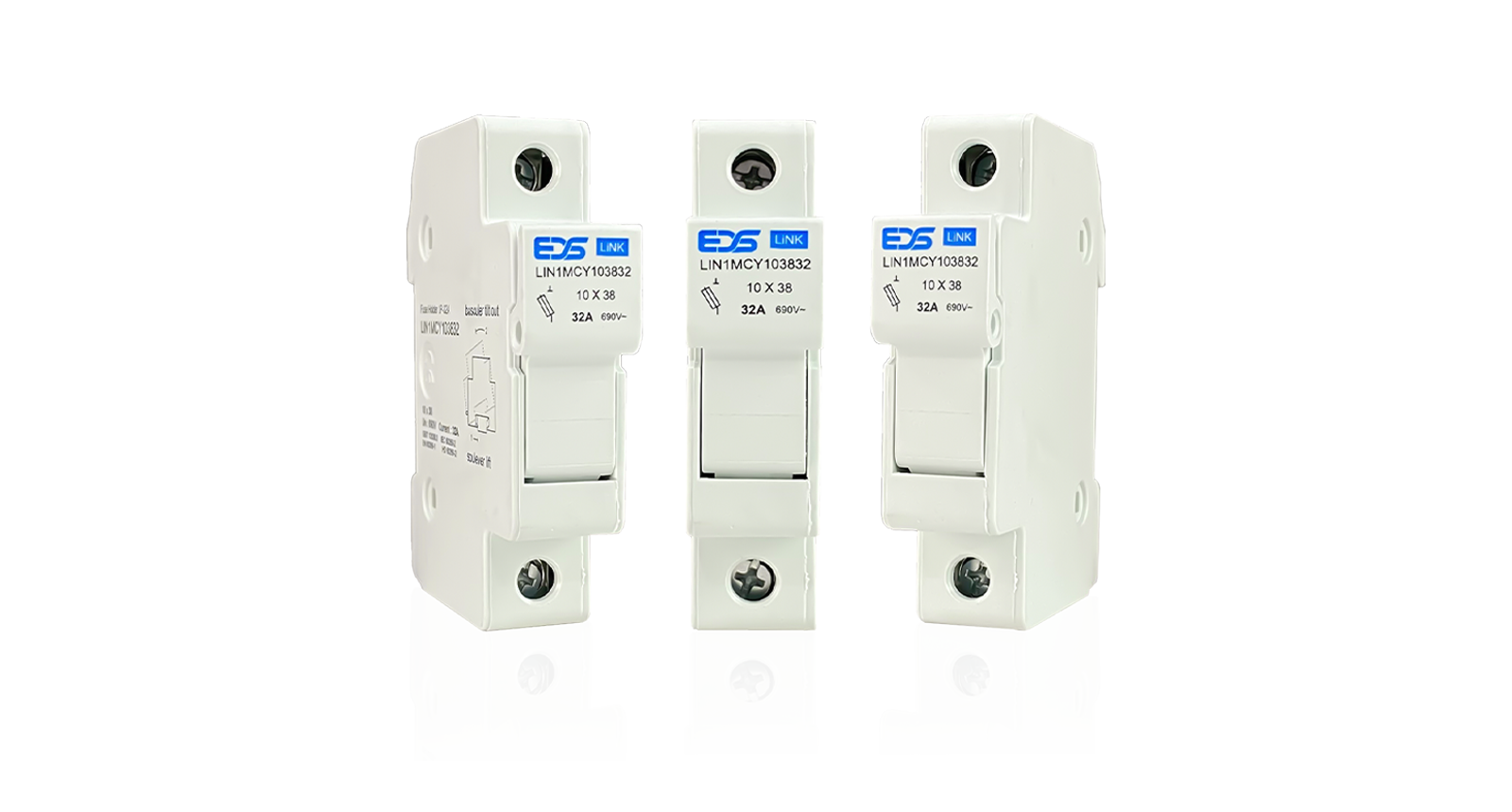

Cylindrical Fuse Holders LiNK

Secure and Reliable Protection for Electrical Circuits

The LiNK Series cylindrical fuse holder supports 10×38 fuses with a rated current of 32A and operating voltage up to 690VAC. Designed for single-pole protection, it features an indicator light, UL94-V0 flame-retardant housing, and tin-plated copper contacts. Its terminals accommodate rigid cables from 0.75–16mm² and flexible cables from 0.75–10mm². With compact 17.8mm width, 35mm DIN-rail mounting, and IP20 protection, it provides safe and organized installation while complying with IEC 60269-1 and EN 60269 standards.
